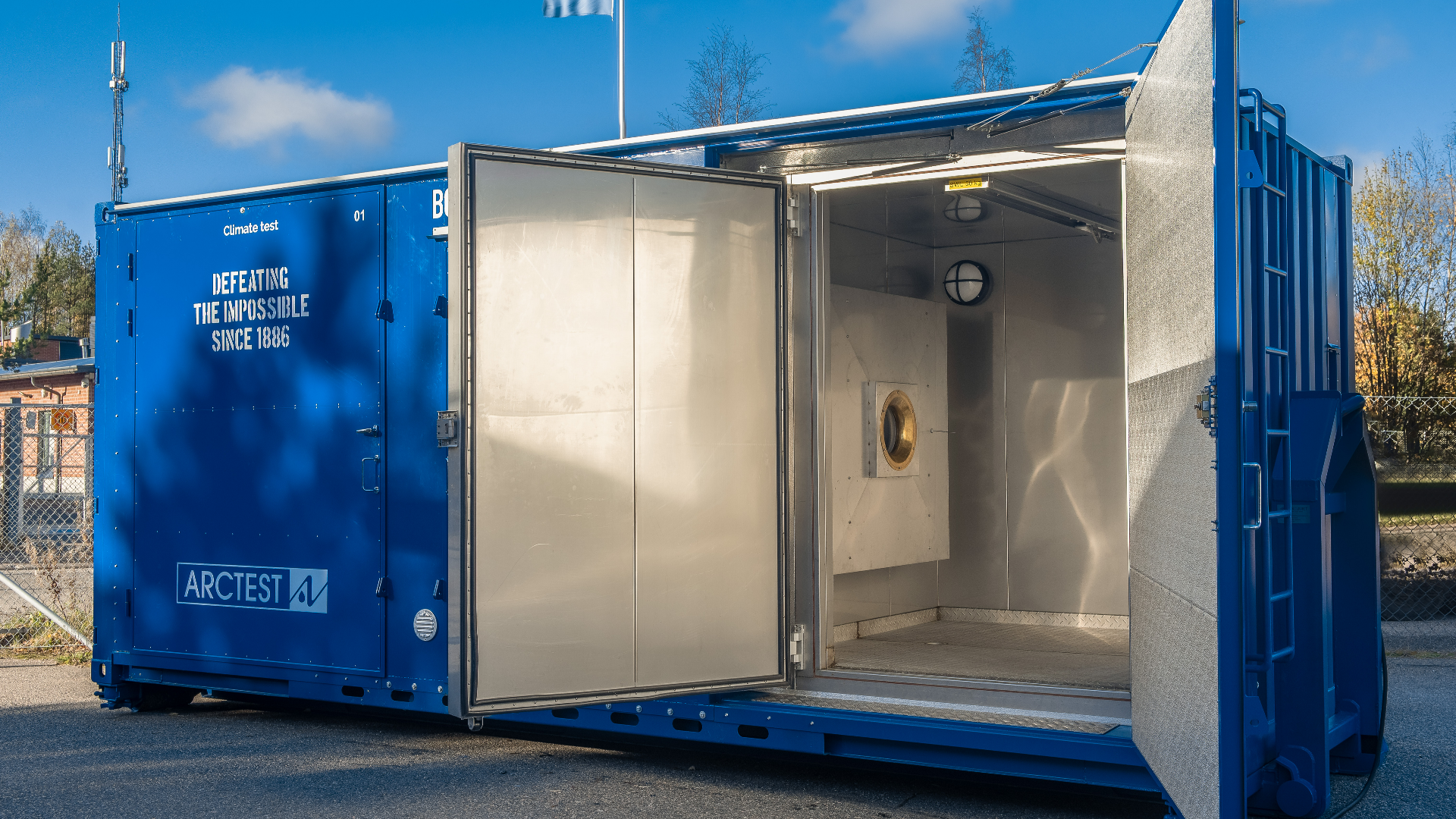

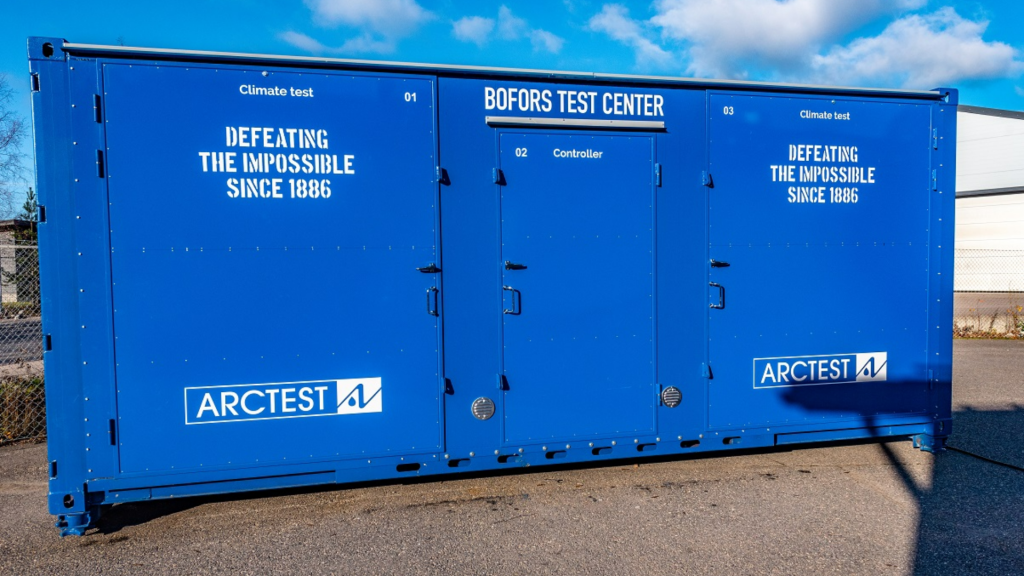

We delivered SAAB Bofors Test Center a 20 ft container, that consists of three rooms:

• engine compartment
• cold test chamber
• hot test chamber
  Construction is based on standard street container.

TECHNICAL SPECIFICATION

Product: ARCMILC-202 / -54..-10/0…+71
A 20 feet temp test container, which is based on “standard” road container

External dimensions 6000x2400x2700mm (LxWxH)
Engine compartment
Internal dimensions approx. 1550x2100x2100mm (LxWxH)
Heating, approx. 20°C

Test chamber A&B
Internal dimensions approx. 1650x2000x2100mm (LxWxH)
A. climate -54…-10 / B. climate 0…+71°C
Isolated walls, 150mm
Wide doors(2) at the side of the container
Non slip floor
Point load, min. 1000kg/m2

Temperature range -54ºC...-10 / 0…+71ºC
Control stability and uniformity +/- 1ºC

The temperature can be controlled in ramp function.
Actual values and set values in the chamber can be seen digitally on the control panel.
The recording function enables to create a graphical presentation of the development of the test process in the display.

Program editor is included. The test programs can be edited and sent with PC to the controller.
