Arctest designed and delivered a very demanding test room to Centria UAS for testing a big variety of industrial products, everything from building materials to electric vehicles.

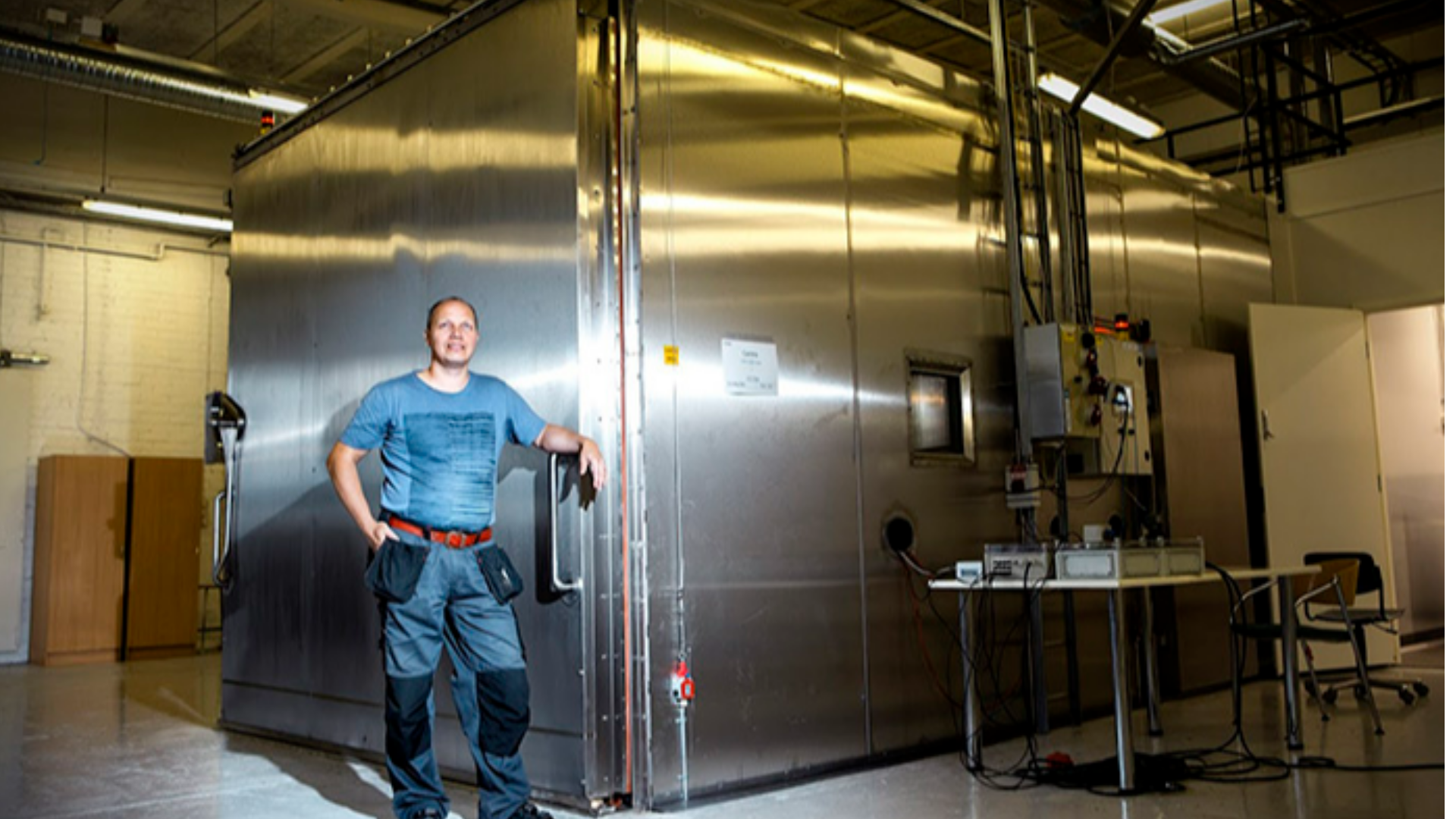

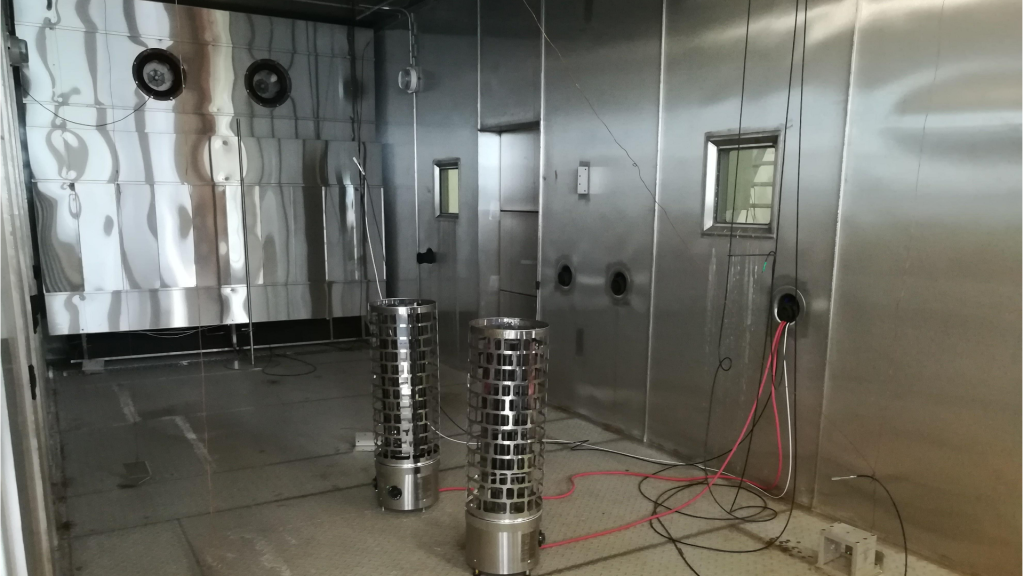

The room is a “build on site” chamber, with welded stainless steel inner walls and a big loading door.

Product: ARCR-54 / -60…+120˚C / 10…96 %RH

Test chamber size: 3000 x 6000 x 3000 mm (WxLxH)

Floor point load: 3000 kg/m2

Doors: Sliding door 3000x3000 mm and 900x1900 mm door.

The main door is designed as a sliding door and it can be replaced with a different type of door at no additional cost. Emergency opening option on the inside of the door.

Pressure release hatch: 1630 x 1000 mm (roof installation)

Temperatures: -60ºC / +120 ºC

Uniformity 1K at -40˚C…+85˚C

Cooling speed 1˚C/min at +85˚C…-40˚C, with heat load and/or DUT

Heating speed 1˚C/min at -40˚C…+85˚C, with DUT

Heat load 9000W / +85˚C

Humidity At temperature range +10..97°C,

Dew point +6°C

Adjustment range for empty chamber 10%RH…96%RH, ±3%RH

Adjustment range with heat load 10%RH…86%RH, ±5%RH
